Residential wastewater treatment plants Aquatec VFL - AT 6 - AT 20
AT6 - AT20 residential wastewater treatment plants were invented to purify sewage water for detached houses.
Wastewater treatment plants of the AT 6 to AT 20 series are solutions and bring benefits for every household:
- Clean water directly at source of pollution
- Low operating costs of wastewater treatment unit
- Operation up to 8 times cheaper compared to the cesspool
- High quality purified water
- Reuse of purified water
- Quiet, odorless
- Meets the prescribed EN 12566-3 standard
Purified waste water can be discharged into surface or underground water, recycle it by using for irrigation of lawns and ornamental greenery or use it for technical purposes after filtration.
 |
Design of accurate WWTP solution |
 |
Consulting for residential wastewater treatment solutions |
 |
Fast delivery times of |
 |
Normal size trucks transport |
 |

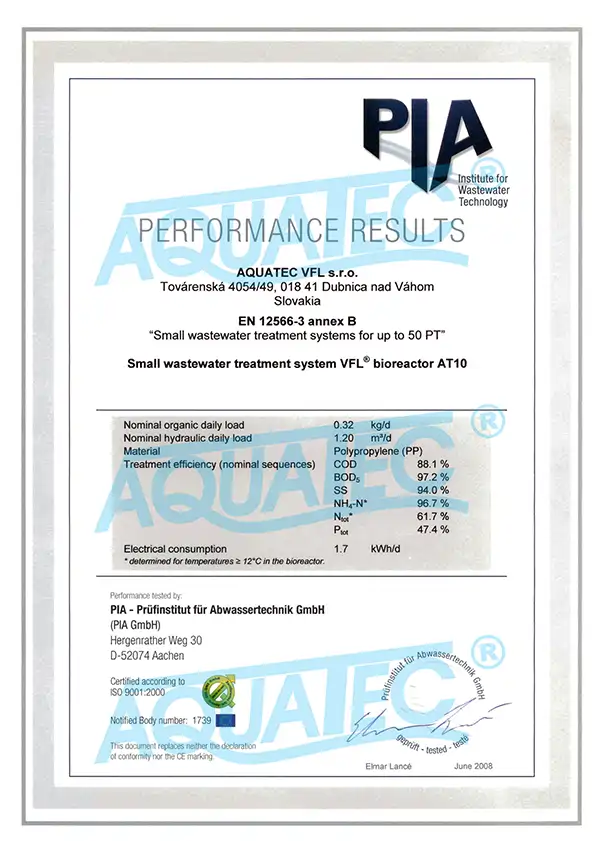

Tested at PIA
Testing Institute for
Wastewater Technology
in Aachen, Germany
|
 |
230 V electricity connection for residential WWTP |
 |
Self supporting design backfill with sorted material |
 |
Stainless steel locking system for WWTP |
 |
Remote control of
wastewater treatment plant |
Our service regarding residential wastewater treatment plants
|
|
PLACING of wastewater treatment plant |
 |
START of wastewater treatment plant |
 |
SERVICE of wastewater treatment plant |

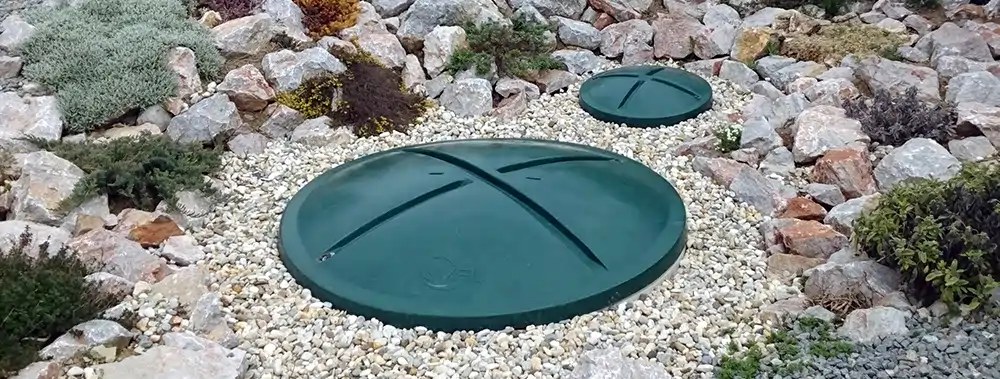

WWTPs of the type AT 6 to AT 20 are installed into a pit with a 15 cm thick reinforced concrete slab on the bottom, so that the upper edge of the WWTP tank overlaps about 5 cm above the terrain. If necessary, and if the design documentation requires it, the WWTP is to be concreted to the height specified by the project documentation. WWTP must be filled with water (to the outflow pipe level) before doing the backfill. Detailed instructions for installing of WWTPs are given in the operating instructions annexed. The VFL Dutch Caribbean technical team can take care of the installation.
VFL Dutch Caribbean service and maintenance of wastewater treatment plants
For the long lifetime of each process equipment, it is necessary to provide professional service. We therefore provide wastewater treatment plants maintenance and service throughout Aruba:
Warranty service of wastewater treatment plants
Post-warranty service of wastewater treatment plants
Regular prepaid service of wastewater treatment plants
Emergency service of wastewater treatment plants
 |
Integrated retention chamber for wastewater |
|
Thickness of the tank wall is 8 mm and is made by UV stable polypropylene |
|
10 years watertightness guarantee |
|
|
First class materials used for wastewater treatment plants |
|
Stainless steel locking system for every wastewater treatment plant |
|
100% money back guarantee |
 |
 |
 |
|||
|

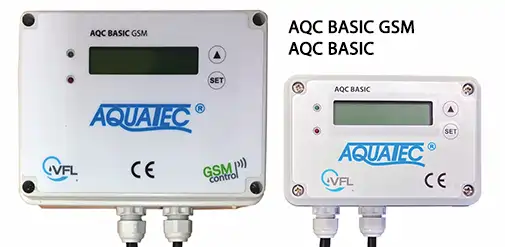

Control units for Aquatec VFL wastewater treatment plants AQC BASIC or AQC BASIC GSM |
Air blower for wastewater treatment plants |
Tank for the blower for wastewater treatment plants |
Technical parameters:
| TYPE |
Connected persons [no.] |
Tank diameter x height [mm] |
Manhole diameter [mm] |
Height and DN of inflow/outflow [mm] |
Usable volume [m3] |
Daily inflow [m3/day] |
Weight [kg] |
Blower [W] |
Voltage [V] |
| AT 6 | 2-5 | 1400x1800 | 1400* | 1300/1150 -DN125 | 1,70 | 0,60 | 105 | 60 | 230 |
| AT 8 | 6-7 | 1400x2200 | 1400* | 1700/1500 -DN125 | 2,20 | 0,90 | 125 | 60 | 230 |
| AT 10 | 8-9 | 1630x2200 | 1400 | 1700/1250 -DN125 | 3,10 | 1,20 | 195 | 80 | 230 |
| AT 12 | 9-10 | 1800x2200 | 1400 | 1700/1500 -DN125 | 3,70 | 1,50 | 225 | 100 | 230 |
| AT 15 | 11-15 | 2100x2200 | 1400 | 1700/1500 -DN125 | 5,10 | 1,95 | 330 | 120 | 230 |
| AT 20 | 16-20 | 2250x2400 | 1400 | 1950/1800 -DN160 | 6,70 | 2,70 | 405 | 150 | 230 |
* according to selected solution 600 mm

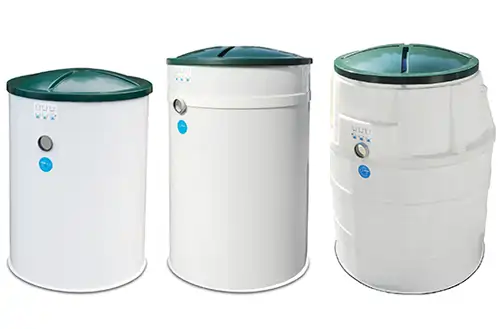

AT6, AT8 and AT10 wastewater treatment plants from Aquatec VFL company. Size and shape comparison:
