Horizontal below ground plastic tanks - type TH
Utilization of Aquatec horizontal underground plastic tanks
Underground utilization
- Rainwater tank
- Pump station tank
- Accumulation tank for sewage water
- Irrigation shaft
Surface utilization
- Rainwater tank
Horizontal underground plastic tank advantages
- Rotational moulding without welds or joints (monoblock)
- Long life-time
- Low weight
- Simple manipulation
- Installation on a compacted sub-base (without using concrete if groundwater presence is excluded)
- Unbeatable price versus quality
- Lockable cover

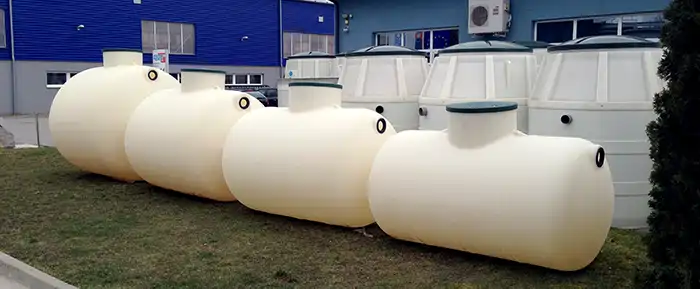

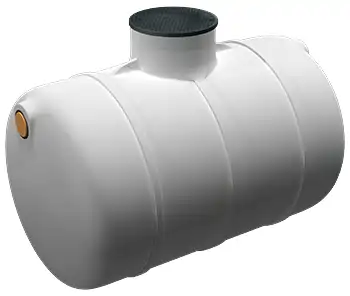

HORIZONTAL UNDERGROUND PLASTIC TANK - TH type
Horizontal placed TH underground plastic tanks are 100% water resistant tank manufactured by the rotomoulding technology. Eliminating the possibility of groundwater occurence the tank is then placed on the compacted sub-base 25 cm thick including the overlapping footprint of the tank by 20 cm. In 30 cm layers 4/8 gravel is used for backfilling the tank and make up the sub-base. Inspection holes in 600 mm diameter are created for the inspection and depletion.The tanks include an integral extension.The inlet pipeline depth is 500 mm under the surface level used with the extension. Additional extensions are available for the deeper inlet. Consulting our trained staff for additional extension is recommended.
Horizontal placed TH underground plastic tanks are designed with a pre-arranged inlet and outlet. The tanks are assembled on the compacted sub-base without using concrete foundation slab.
Horizontal placed underground plastic tanks includes a lockable "standard" cover - green. Available covers are UV stabilized and walkable.
Underground TH plastic tanks - dimensions:
| Type |
Volume m3 |
Length |
Total height mm |
Foundation |
| TH 2,3 | 2,30 | 2400 | 1500 | sub-base (gravel 4/8 mm) |
| TH 3,15 | 3,15 | 2400 | 1700 | sub-base (gravel 4/8 mm) |
| TH 4,2 | 4,20 | 2400 | 1920 | sub-base (gravel 4/8 mm) |
| TH 5,2 | 5,20 | 2400 | 2120 | sub-base (gravel 4/8 mm) |
| TH 6,2 | 6,20 | 2400 | 2300 | sub-base (gravel 4/8 mm) |
THE TANK STANDARD FORMAT of horizontal underground plastic tank TH Type:
- polyetylene
- natural white colour
- Ø inspection hole 600 mm
- inlet/outlet into the tank DN 125
Available accessories:
- metal safety grate - collecting bigger objects to fall into the tank - located in the tank spout
- extensions (540, 300, 200 mm) designed for required inflow depth for underground plastic tanks
- rainwater filtration filter basket (collecting floating sediments)
-
Other accessories
- Inlet pipeline DN 125
