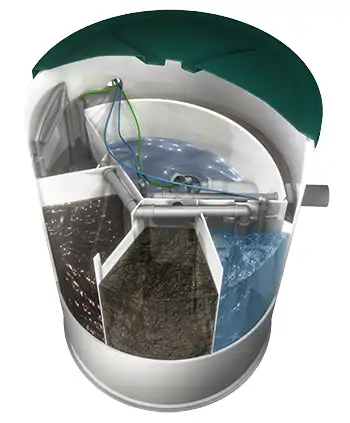

AT PLUS wastewater treatment plant - AT 6 PLUS - AT 20 PLUS
Wastewater treatment plants AT 6 PLUS - AT 20 PLUS, were invented to purify sewage water for detached houses.
AT PLUS residential wastewater treatment plants offer:
- Maximum comfort of residential wastewater treatment plant
- Highest cleaning efficiency tested at the German PIA Aachen Laboratory
- Possibility of recycling the water
- Minimum requirements for WWTP operators
- Electronic management of the wastewater treatment process
- Minimum electricity consumption of WWTP
- No mechanical valves in WWTP
- Optional online monitoring and GSM reports of the state of the wastewater treatment plant
- Optional regular contractual service of WWTPs (clients in Aruba)
- 24/7 emergency service of WWTP (clients in Aruba)
Why is this wastewater treatment plant named AT PLUS?
Because it represents the ultimate in comfort!
Because it achieves the highest cleaning efficiency!
Because it achieves the lowest electricity consumption!
The purified wastewater can be discharged into surface or underground water, recycle it for irrigation or use it for technical purposes after filtration.
 |
TRANSPORT
within Aruba
|
 |
Control unit AQC PLUS GSM |
 |
TANK FOR THE BLOWER for wastewater treatment plant |
 |
PLACING INTO PREPARED HOLE - no construction works |
 |
START of the wastewater treatment plant |
 |
Optional: REGULAR CONTRACTUAL SERVICE of the wastewater treatment plant |
 |
Design of accurate
WWTP solution
|
 |
Consulting for residential
wastewater treatment solutions
|
 |
Fast delivery times
of WWTP |

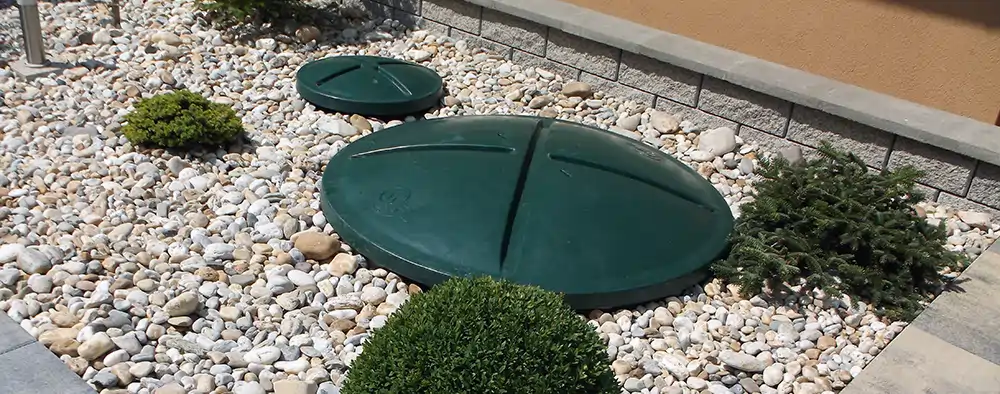

Simple installation of AT PLUS wastewater treatment plants
WWTPs of the type AT 6 PLUS to AT 20 PLUS are installed into a pit with a 15 cm thick reinforced concrete slab on the bottom, so that the upper edge of the WWTP tank overlaps about 5 cm above the terrain. If necessary, and if the design documentation requires it, the WWTP is to be concreted to the height specified by the project documentation. WWTP must be filled with the water (to the outflow pipe level) before doing the backfill. Detailed instructions for installing of WWTPs are given in the operating instructions annexed. The VFL Dutch Caribbean technical team can take care of the installation.
VFL Dutch Caribbean service and maintenance of wastewater treatment plants
For the long lifetime of each process equipment, it is necessary to provide professional service. We therefore provide wastewater treatment plants maintenance and service throughout Aruba:
Warranty service of wastewater treatment plants
Post-warranty service of wastewater treatment plants
Regular prepaid service of wastewater treatment plants
Emergency service of wastewater treatment plants
Advantages of Aquatec VFL AT PLUS wastewater treatment plants
 |
Integrated retention chamber
for wastewater
|
|
Thickness of the WWTP
tank wall is 8 mm
|
|
10 years watertightness guarantee |
|
|
First class materials used
for wastewater treatment plants
|
|
Stainless steel locking system for
every wastewater treatment plant
|
|
100% money back guarantee |
|
|
Tested at PIA Testing Institute for Waste Water Technology
in Aachen, Germany
|
|
Remote GSM control of wastewater treatment plant |
|
24/7 service of wastewater treatment plants |
AT PLUS wastewater treatment plant package includes
 |
 |
 |
||
|

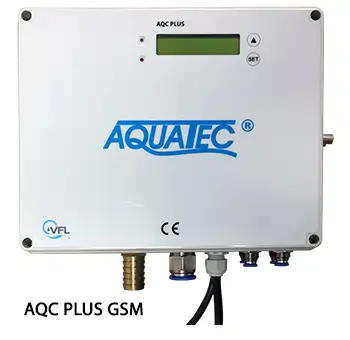

Control units for wastewater treatment plants AQC PLUS GSM |

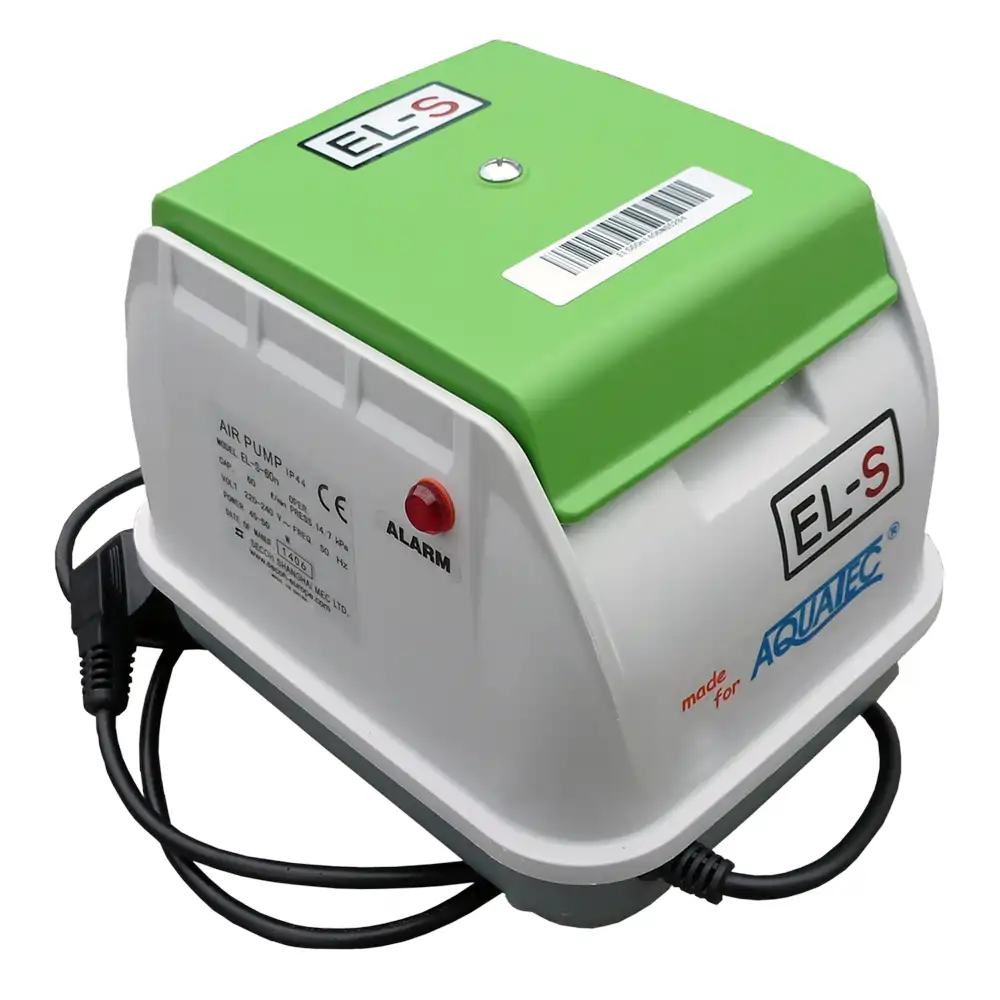

Blower for wastewater treatment plants |

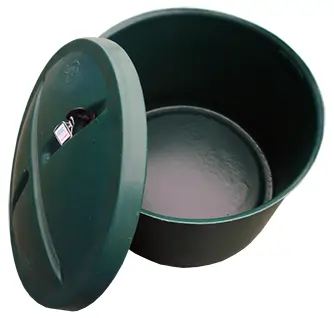

Tank for the blower for wastewater treatment plants |
Technical parameters:
|
WWTP Type |
Connected persons [no.] |
Tank
diameter x height
[mm] |
Manhole diameter [mm] |
Height and DN of inflow/outflow [mm] |
Weight [kg] |
Usable volume [m3] |
Daily inflow [m3/day] |
Blower [W] |
Voltage [V] |
| AT PLUS 6 | 2-5 | 1400x1800 | 1400* | 1300/1150 -DN125 | 105 | 1,70 | 0,60 | 60 | 230 |
| AT PLUS 8 | 6-7 | 1400x2200 | 1400* | 1700/1500 -DN125 | 125 | 2,20 | 0,90 | 60 | 230 |
| AT PLUS 10 | 8-9 | 1630x2200 | 1400 | 1700/1500 -DN125 | 195 | 3,10 | 1,20 | 60 | 230 |
| AT PLUS 12 | 9-10 | 1800x2200 | 1400 | 1700/1500 -DN125 | 225 | 3,70 | 1,50 | 80 | 230 |
| AT PLUS 15 | 11-15 | 2100x2200 | 1400 | 1700/1500 -DN125 | 330 | 5,10 | 1,95 | 100 | 230 |
| AT PLUS 20 | 16-20 | 2250x2400 | 1400 | 1950/1800 -DN160 | 440 | 6,70 | 2,70 | 120 | 230 |
* according to selected solution 600 mm
